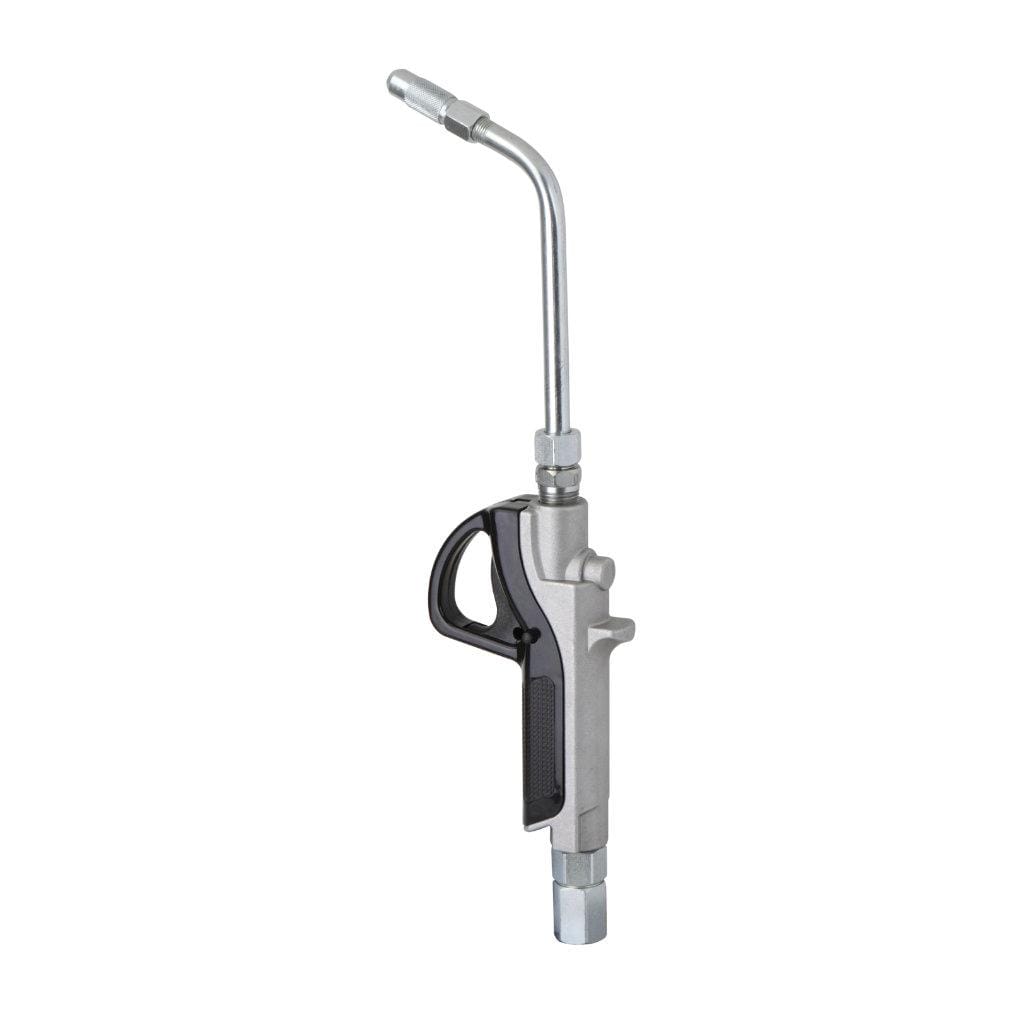

The Groz OGN/SA/1-2R/B Automatic Oil Control Nozzle 45706 is designed for efficient oil filling where the operator may need continuous flow without holding the trigger throughout the job. A locking switch maintains flow when required, while the swivel inlet and filtered connection improve hose handling and help protect the nozzle mechanism.
Key Features
- Continuous-flow locking switch reduces the need to hold the trigger
- Swivel inlet helps reduce hose twisting
- Integrated filter helps keep dust and contaminants out of the mechanism
- Strong, lightweight die-cast aluminium body
- Designed for oil viscosity up to SAE 140
- Maximum flow up to 30 LPM
Technical Details
- Brand: Groz
- Model: OGN/SA/1-2R/B
- Product code: 45706
- Type: Automatic Oil Control Nozzle
- Operation: trigger with continuous-flow locking switch
- Body material: die-cast aluminium
- Wetted component materials: aluminium, steel, brass and NBR
- Inlet: 1/2 in BSPT
- Inlet type: swivel connection
- Maximum flow: 30 LPM / 8 GPM
- Maximum pressure: 1,000 PSI / 70 bar
- Recommended temperature: -14°C to 55°C
- Fluid compatibility: oil up to SAE 140
Suitable For
- Vehicle oil filling
- Automotive workshops
- Industrial machinery
- Gearboxes and transmissions
- Heavy-equipment maintenance
- Pneumatic oil pumps and drum pumps
- Agriculture and construction
- Mobile oil dispensing systems
Important Notes
- “Automatic” refers to the continuous-flow locking function; the nozzle does not automatically stop based on dispensed volume.
- No volume meter or oil counter is included.
- Not recommended for water-based fluids, petrol, diesel, other fuels, corrosive fluids or fluids incompatible with aluminium, steel, brass or NBR.
- Clearance item with very limited stock; no restock is planned after sell-out.
